BX1030

Front Load / Dual-Note Bill Dispenser with 3 Cassettes

Standard’s BX – Bill Exchanger Series machines are designed to be an “Automated Attendant”, providing bill change for higher denominations. Excellent locations for Bill Exchanger machines are attended or unattended coin laundries, card laundries, car washes, museums, zoos and aquariums, paid parking lots; anywhere that would allow more customer convenience by breaking higher denomination bills into smaller denomination bills. Why make your customers use $20 bills when smaller denomination bills would better serve the purpose, and help contribute to more revenue for your business.

The BX1030 features the Fujitsu F53 – Dual Note Bill Dispenser with 3 Bill Cassettes. This dispenser uses cassettes that are loaded with bills; and these cassettes have a value based on the denomination in it, are loaded into the dispenser unit. The BX1030 is programmed to dispense the bills from the cassettes as needed to make best change. The additional cassette can be used for a different denomination or added capacity of the same denomination.

BX1030 Change Machine Features:

  • Front Load configuration for Bill Exchange
  • (1) CPi (Mars) Bill Acceptor – accepts $1 – $20 Bills – with 500 Bills Stacker
    (Coinco Vantage, Pyramid APEX, and Cashcode available)
  • (1) Dual-Note Fujitsu F53 Bill Dispenser with 3 Cassettes – holds from 1,050 (used) to 1,500 (new) Bills
  • Includes EF+ Module – with Remote Notification Feature
  • Heavy gauge steel cabinets with solid-welded seams (no rivets or spot welds)
  • High gloss, powder-coat enamel paint finish with applied Lexan graphics decal
  • (2) T-handle Locks with Ace Lock Plugs
  • One Year Warranty on Fujitsu Bill Dispenser unit
  • Two Year Limited Warranty
SPECIFICATIONS
SPECIFICATIONS
Accepts
$1 | $5 | $10 | $20
Dispenses
1, 2 or 3 Denominations of Bills
Capacity
1,050 (Used) - 1,500 (New) Bills
Dimensions
28"H x 19"W x 18"D
Ship Weight
206 lbs.
MC100

BX1030

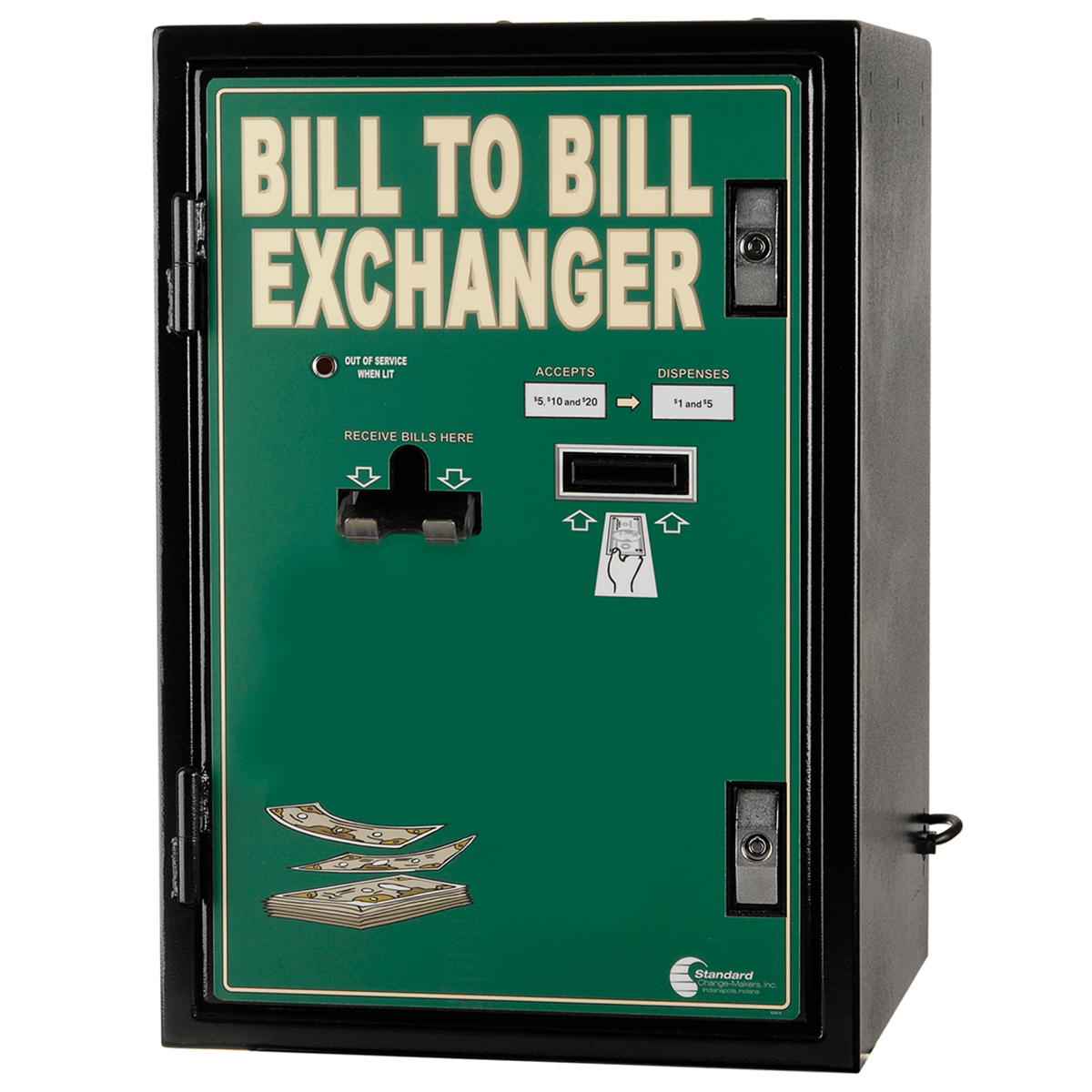

The Bill Exchanger Series machines act as an “automated attendant” by breaking $20 bills into a smaller denomination, such as $5 bills

MC200

BX1030

The BX1030 accepts bills and dispenses lower denomination bills

MC100

BX1030

The BX1030 uses a base Fujitsu Model F53 Dual-Note Bill Dispenser with three bill cassettes

Optional Features for BX1030

DESCRIPTION
CPi (Mars) Bill Acceptor for $1 - $100 (US)
Vending Base (30"H x 19"W x 18"D)
(1) Non-Resettable Bills In / Bills Out Counter Kit
(1) Resettable Bills In / Bills Out Counter Kit
Medeco Lock Plug Upgrade for T-Handle Lock
Transcient Surge Suppressor
"Sold Out" Filler Plate for Fujitsu Dispensers
DESCRIPTION
Cashcode Bill Acceptor for $5 -$100 (CAN)
Vending Header (12"H x 19"W x 18"D)
(2) Non-Resettable Bills In / Bills Out Counter Kit
(2) Resettable Bills In / Bills Out Counter Kit
Portable Audit Printer Kit (requires EF Module)
Crank Locks with Medeco Lock Plugs Upgrade
Custom Lexan Graphics Decal
