Frequently Asked Questions (FAQs)
System 500 and 600 Bill Acceptor Questions?
HOW DO I FIND OUT WHAT SOFTWARE VERSION MY STANDARD ACCEPTOR HAS?
Bill acceptor software revisions can be identified by a couple different methods. All bill acceptors manufactured by Standard Change-Makers use a memory chip located on the main control board in the acceptor. Simply remove the metal cover and locate the memory chip on the control board (left hand side when the bill acceptance port is pointing away from you), which is easily identified by the software revision label adhered to it.
A much simpler way is to use the keyboard or hand-held data terminal to identify the software revision. By pressing 1, then 0, and then 0 again on the keyboard keypad, the display will show the software version.
If your machine has a hand held menu driven data terminal, you will find the software version by pressing F2 (Diagnostics), then F3 (Version), then F1 (Changer). After viewing the program version, you can put the machine back into service by pressing F5 three times.
Please note – it is important to identify if there is an “I” or a “P” at the end of the software version number. This identifies if it is an “I”ntel or “P”entium chipset.
HOW DO I KNOW WHICH BILL ACCEPTOR MODEL I HAVE?
There are several different series of bill acceptors sold by Standard Change-Makers. One of the original acceptors, the Model 25A, was sold in our changers for many years. This acceptor had a tray that money fit into. The customer would “push” the tray in to activate the change machine. This acceptor was discontinued in 1989, although we still provide some repair service for it. This acceptor will not be able to accept the new U.S. currency when released.
The System 200 or System 200A series acceptors have been sold in model SC5 and SC5T change machines. This acceptor series has the stacker and an “end feed” type bill acceptor together as one unit. The System 200 has a flat, gray power cord with a red stripe on one side of the cord. The 200A has a black power cord consisting of a group of colored wires banded together. Simple switch settings select the bills to be accepted.
The System 500 series note acceptor was sold in change machines from 1987 to 1994. This “end feed” bill acceptor was fully programmable, through a keyboard, to accept up to four different denominations of coins and bills. The power supply is a black 3x4x8 inch box, with an illuminated red switch. System 500 is printed on the black end cap of the acceptor.
The System 500-E series note acceptor replaced the System 500 note acceptor in 1995. This note acceptor is similar to the System 500 acceptor, but has a gold colored 8x10x2 inch power box. The end cap of this acceptor has a blue sticker on it that reads “System 500E”.
The System 600-FST series note acceptor was introduced in 1998 to replace the System 500-E acceptor. This bill acceptor uses a more advanced CPU board and sensor technology. It uses the hand-held Data Terminal for its programming, diagnostic and audit function feedback. The acceptor end cap will have a red sticker that reads “System 600FST”.
The System 600-EF series note acceptor was introduced in 2008 to replace the System 600-FST acceptor. This bill acceptor uses a more advanced CPU board and better sensor technology. It also uses the hand-held Data Terminal for its programming, diagnostic and audit function feedback and a 40-watt power supply. The acceptor end cap will have a white sticker with a U.S. flag (or Canadian or Mexican flag for those countries) that reads “System 600EF”.
MY BILL ACCEPTOR IS REJECTING TOO MANY BILLS. WHAT CAN I DO TO CORRECT THIS?
There are a few things an owner can do to keep his/ or her System 600 change machine working at the optimum level. The first is setting up a regular maintenance program, which includes cleaning and calibrating the bill acceptor. Depending on usage, the bill acceptor track assemblies should be wiped clean of dust and debris every three to four months. A second step would be to initiate the Automatic Calibration Routine (See the “CALIBRATION” section on the Service page).
If you’re still experiencing poor acceptance after cleaning and calibration, the power supply may be the problem. SC machines with hand held programmers will have an error history log (see owner manual for instructions) which you can review. “Watch-dog” or “Pwr Fault” errors would indicate a power related problem, which can cause poor acceptance. Also, check the security settings on the acceptor. OEM acceptors have a HIGH/LOW setting, while the 500/500-E or 600-FST/600-EF bill acceptors will have settings from 0-9. Again, see your owner’s manual for information on adjusting these settings.
HOW DO I CALIBRATE MY BILL ACCEPTOR?
Since there are several types of note acceptors that Standard has developed, you must first know what acceptor you own. You can find that information on the serial tag located on your note acceptor. Once you have that information, you may retrieve the complete calibration instructions by selecting your note acceptor model in the “CALIBRATION” section of our Service page.
All System 200, 200A, 500, 500-E, 600-FST and 600-EF bill acceptors use the same calibration card. These cards are date coded so that we can control the quality of paper stock used. Calibration cards should be kept in a clean and dry place for safekeeping.
Never use a dirty calibration card to calibrate your note acceptor.
HOW SHOULD I CLEAN MY STANDARD BILL ACCEPTOR?
You should first start by examining the drive roller assemblies. These drive rollers can be accessed by lifting up the toggle handle and opening up the upper track. Typically these rollers need to be replaced anywhere from 5 to 7 years depending on usage. However, they should be cleaned once a year by using a damp clean cloth to remove the ink and dirt build-up.
The top rollers can be scraped clean with a flat piece of metal such as a small standard screwdriver.
Next, you should clean your track cells on the track assembly. Located on the lower track of all System 200, 200A, 500, or 500-E acceptors, you will find 4 or 5 of these track cells depending on the age of your equipment. These should be carefully brushed or blown clean every 3 or 4 months depending on usage. The glass-covered sensor located in the middle of the lower track assembly should be wiped clean with a clean damp cloth.
The upper track dome (located over the top of the reference clip) should be brushed or blown clean every 3 or 4 months. If you do not have the enhanced CPU board, your unit utilizes a reference clip which may need to be replaced if discolored.
System 600-FST and System 600-EF acceptors use 4 track cells, which are located on the upper track assembly. These should be brushed or blown clean every 3 or 4 months depending on usage. The System 600 acceptor models have glass covered sensors on both the upper and lower track assemblies. These also should be wiped clean with a clean damp cloth every 3 or 4 months depending on usage.
MY MACHINE GOES OUT OF SERVICE WITH "ERROR A"...?
An Out of Service condition with an “ERROR A”, and when you reset the machine – a coin drops — is often related to a hopper drive board failure. Upon reset, the hopper drive board incorrectly activates the hopper motor causing coins to be dispensed. The note acceptor identifies this as an incorrect dispense and turns off the hopper motor power source and displays an Error message on the keyboard indicating which hopper has failed (in this case Hopper A). This hopper drive board can be purchased from Standard Change-Makers and can be easily installed on location.
MY MACHINE GOES OUT OF SERVICE WITH "TAMPER ERROR"...?
The TAMPER ERROR indicates that an attempt to remove the bill through the bill path backwards has occurred. This can indicate either a custtomer inadvertently trying to pull their bill out, or a more serious stringing attempt. Check your audits and verify that the DOLLARS IN count match what the audit says you should have in your stacker.
A bill acceptor that requires maintenance can also cause the TAMPER error. First, follow the instructions under the topic “How should I clean my Bill Acceptor?” on this page.
If you still have problems, check your acceptance rate. A poor acceptance rate leads to multiple bill rejections, which may in turn cause bill jams resulting in a Tamper error. Follow the instructions under the topic “How do I calibrate my Bill Acceptor?” to increase your bill acceptance rate
WHAT KIND OF MAINTENANCE IS REQUIRED FOR MY BILL STACKER?
System 600 Bill Stackers are simple, motorized devices that simply pushes the bill into the bill box. In the case of a two or three box stacker, we add the movement of side-to-side for separation of bills. It is the side to side movement that requires a little cleaning to avoid stacker “down-time”.
Every six months remove the bill stacker from its mount and clean. Remove all dust, dirt and bill debris using canned air (no lubricant is required). On two and three box stackers, remove the stacker bill box by removing the six phillips head screws that secure it to the stacker housing. Using a clean rag, clean the two “guide bars” that allow the stacker to move the bills to the second or third compartment.
Alignment Guides will help guide you through realignment if stacker bill jams become frequent issues. These guides can be found in the System 600 General Maintenance Guide.
CAN I UPGRADE MY OLDER SYSTEM 500/600 BILL ACCEPTOR TO THE NEWER SYSTEM 600-EF?
Absolutely! Our Service Dept. has a upgrade kit available that will allow you to replace your older System 500, 500-E or System 600-FST bill acceptor unit with the newer, faster System 600-EF.
The kit includes everything you need to swap out the bill acceptors, including instructions. Contact our Service Dept. for more information and pricing.
WHAT IS THE SC-CONVERSION KIT?
The SC-Conversion Kit is a proven product that allows owners of older technology, like the System 500, 500-E, 600-FST bill acceptors, to update their machine with an OEM bill acceptor, such as the Mars (CPi) or Coinco Vantage that we use in our Modular Series machines. As these older SC series bill acceptors continue to age, it becomes harder to keep them calibrated and in reliable operation. Likewise, after 15-20+ years of reliable service the technology becomes harder to support as we have trouble purchasing components that are no longer manufactured.
The SC-Conversion Kit features the SC-Conversion Controller – an EF+-looking device with an LCD display and connections for one bill acceptor, one coin acceptor and up to four coin hoppers. It provides many of the programming, diagnostic and auditing details of the System 500/600 keypad or data terminal, and uses a similar menu system for scroll through various options.
The SC-Conversion Kit allows you to continue to use the SC series coin hoppers, and the CPi Cashflow coin acceptors without removing the cabinet from its location in your business. You will not be able to use the Separating Stackers with the new SC-Conversion Kit. For more information, please contact the Parts Dept. at 1-800-968-6955; or see the SC-Conversion Kit Manual on our OWNER’S MANUALS page under the Support tab above.
Modular Series Questions?
WHICH BILL ACCEPTORS ARE AVAILABLE FOR THE MC, BX AND BCX SERIES?
From 2004 to 2011, Standard used the Pyramid Technologies APEX 5400 Series bill acceptor for U.S. ($1 through $20) currency acceptance. As of 2011, The Coinco Vantage has been the default bill acceptor for both U.S. and Canadian ($5 through $20) currency. If the order does not specify a bill acceptor preference, we will supply the Coinco Vantage for any “MC” designated model number. For models beginning with “BCX” or “BX”, the CPi (“Mars”) Talos Series bill acceptor is the default for U.S. currency.

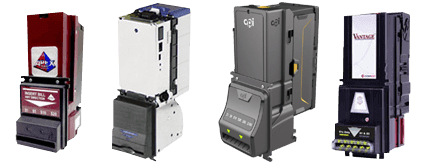

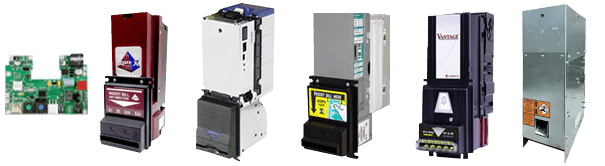

Bill Acceptors used in Modular Series Change Machines
- Coinco Vantage (U.S. – $1 – $20 bills) with 600 bill stacker
- Coinco Vantage (CAN – $5 – $20 bills) with 600 bill stacker
- CPi “Mars” Talos T-7 (U.S. – $1 – $20 bills) with 500 bill stacker
- CPi “Mars” Talos T-7 (CAN – $5 – $20 bills) with 500 bill stacker
- CPi “Mars” Talos T-8 (U.S. – $1 – $100 bills) with 500 bill stacker
- Pyramid APEX 7200 (U.S. – $1 – $20 bills) with 500 bill stacker
- Pyramid APEX 7000 (MEX – $20 – $500 Pesos) with 500 bill stacker
- Cashcode (CAN – $5 – $20 bills) with 500 bill stacker
We often refer to these as “OEM Bill Acceptors”, because we purchase them from the manufacturers for use in our machines. We do not have any software or firmware control over these products.
WHAT IS THE "FAST VEND SHUT-OFF" FEATURE?
The “Fast Vend” setting allows the machine owner to select a maximum number for each bill denomination to be accepted within a certain time period. If bills accepted exceeds the owner’s selected amount, the machine will automatically shut down. This feature is designed to limit the potential loss of revenue due to counterfeiting or stringing theft that the acceptor was unable to detect.
For example, the Fast Vend default setting for $20 bills is five $20 bills within a 15 minute period. If the machine validates five (5) $20 bills in a 15 minute period throughout the day, it will shut-down for 15 minutes. Owners can modify either the number of bills validated or the period of time in order to better suit the traffic patterns of their businesss. The Modular Series Owner’s Manual will step you through the programming steps for your particular model.
WHAT IS THE EF+ EXPANDED FUNCTION MODULE?
The EF+ Expanded Function Module, is an optional feature available in Modular Series change machines that allows the owner to program certain configuration features, read stored diagnostic reports and read audit reports on the LCD display. Similar in concept to the hand-held data terminal used in the System 600 series machines, the EF+ Module also has the drivers for the optional Receipt and Audit Printer used in Credit Card-to-Token machines and the Portable Audit Printer, and some other special features available in the MC series.
Th EF+ Module has an Ethernet connection that allows owners to hardwire the device into their store’s network router using an Ethernet cable. Once connected and set-up, owners will be able to send alerts and alarms condition notifications to up to five different email or phone accounts. The EF+ can send daily or weekly audit reports at pre-programmed times, and can send texts when certain out of service or alarm conditions are triggered. When an owner replenishes a hopper, they will be able to enter a starting value and set a low-level alert – and when the hopper level is reached, the EF+ will send an alert email or text message.
WHAT DOES "MAKE BEST CHANGE" MEAN?
“Make Best Change” is the default feature in our software for all change machines. In essence, it uses currency tables to allow the machine to dispense the proper change for the denomination accepted. If a machine is purchased with $1 Coin and Quarter hoppers, in our ‘simple-function’ software (a machine without an EF Module) we have to tell the machine to force vend a certain number of the highest value coins first, in this case it would be $1 coins. Then, the machine would take the remaining value and ‘make best change’ with the next available value coin, in this case quarters.
For example, you have a two hopper Model MC200 with (1) $1 coin hopper and (1) quarter hopper, and a customer puts a $5 bill in the bill acceptor. The owner wants to dispense (3) $1 coins on a $5 bill acceptance. Our programming would ‘force vend’ three $1 coins, leaving $2 in additional change to satisfy the vend. The ‘Make Best Change’ function would then signal the second hopper to dispense eight quarters to complete the vend. Further, if the quarter hopper was out of service or empty, the “Make Best Change” feature would have completed the vend by dispensing five $1 coins – because the $1 coin hopper was the only dispenser available to satisfy the vend.
We think you’ll agree that the many variations can be complicated, and that’s why we say, “Don’t let the term simple-function fool you!” The software in our change machines has many functions and features to allow us to troubleshoot and diagnose problems, and also to help prevent fraud and vandalism in your change machine.
