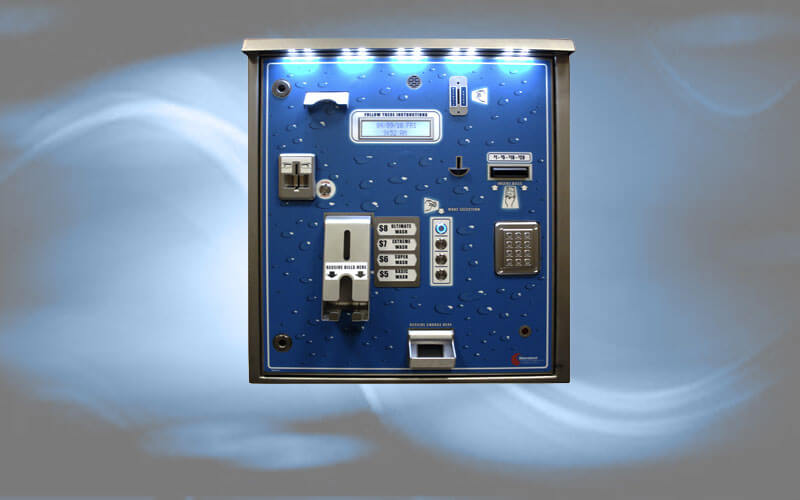

GXP-BX

Front Load Pay Station / One Bill Acceptor / Credit Card / Coin Acceptor / One Coin Hopper / Dual-Note Bill Dispenser

Standard’s Guardian XP series of Car Wash Entry Systems were designed to address the marketing and promotions needs of car wash operators. Seeing a need to provide a cost-effective solution for the low-cost promotions such as: Time-of-Day and Day-of-Week Discount Codes, Charity Codes, Promotional Discount Codes, Fleet Codes, One-Time Use Codes, etc. This flexibility allows owners to promote their wash throughout their community and offer special pricing that will appeal to a lot of different demographic targets.

The GXP-BX includes all the features and functions of the GXP model, plus the addition of a Dual-Note Fujitsu Bill Dispenser. The GXP-BX Pay Station has been used as a stand alone attendant for high-end express washes and tunnel washes. It can be used in a multi-lane tunnel wash as a payment terminal and gate controller, allowing the pay station to open/close gates that control traffic flow into the main wash lane.

The GXP-BX can accept most forms of payment: Bills, Coins, Tokens, Credit Cards, and Codes. It has a Coin Hopper that will dispense change for any cash overpayment, or can dispense a bonus token that can be used for vacuums or vending machines. The GXP can process credit cards via dial-up phone connections or hi-speed internet connections. It can also interface with certain “Pay-At-Pump” POS code devices and the SitePRO+ Remote Management System.

The Guardian XP-BX is a versatile and flexible machine at an affordable price with cost-effective performance and promotional programs.

GXP-BX features:

  • Front Load configuration for Automatic Wash Entry
  • Choice of “Free Standing” or “Retrofit” Cabinet Design
  • (1) CPi (Mars) Bill Acceptor – accepts $1 – $20 Bills – with 500 Bills Stacker
    (Coinco available in Canada)
  • (1) Weatherproof, Mag Stripe Card Reader
  • (1) Steel, Modular Series Coin Hoppers – hold up to 2,000 Quarters ($500 capacity)
  • (1) IDX Electronic Coin Acceptor for $1 Coins, Qtrs and up to (4) Tokens
  • Dual-Note Fujitsu Bill Dispenser – holds up to 1,000 (new) Bills
  • Sunlight-resistant LCD Display
  • (4) Lighted, Steel Wash Selection Buttons
  • 12-key Steel Keypad for Code Entry, Programming and Reporting functions
  • Stainless Steel Cabinet with applied Lexan graphics Decal
  • LED Accent Lights on the face of the machine for easy visibility
  • Stainless Steel Coin Cup
  • (2) Crank Locks with Medeco Lock Plugs
  • One Year Limited Warranty
SPECIFICATIONS
SPECIFICATIONS
Accepts
$1 | $5 | $10 | $20 Bills
Quarters & $1 Coins | Codes
Dispenses
One Denomination of Coins or Tokens; and
One or Two Denominations of Bills (Dual Note Dispenser)
Capacity
2,000 Quarters ($500)
Dimensions
26.25"H x 20.50"W x 13"D
Ship Weight
235 lbs.
MC100

GXP-BX

The GXP-BX has a stainless steel cabinet with up to 8 selection buttons, that can dispense Bills with Coins and/or Tokens

MC200

GXP-BX

The GXP-BX Paystation provides multiple payment forms: Coins, Bills, Credit Card, Codes and Tokens; and can dispense bills with change and/or bonus tokens

MC100

GXP-BX

The GXP-BX has four Wash Selection buttons, and an optional feature that allows up to four additional Wash Selections of Upsell Selection buttons

MC100

GXP-BX

The GXP-BX comes with a Dual-Note Bill Dispenser. This machine provides the most convenience for your customers’ payment options

Optional Features for GXP-BX

DESCRIPTION
20" Straight Stainless Steel Base - Curb Install
Coinco Vantage Bill Acceptor : $5 - $20 (CAN)
Coinco Vantage Bill Acceptor : $1 - $20 (U.S.)
Receipt & Audit Printer Kit
Locking Coin Hopper Lid
Voice Module & Proximity Sensor Kit (Voice Prompts)
Pin Hole Security Camera Kit
Facility Alarm Interface Only Kit
Cooling Fan Kit
Up to 4 Additional Wash Selection/Upsell Buttons
Credit Card Processing - Datacap IPTran LT
SitePRO-Basic Remote Management System (GXP Only)
DESCRIPTION
26" Straight Stainless Steel Base - No Curb Install
CPi (Mars) 700 bill Stacker Upgrade
CPi (Mars) Bill Acceptor : $5 - $20 (CAN)
Second 2.0K Coin/Token Hopper
IDX Coin Acceptor with Divertor Chute - replenish hopper
Custom Voice Prompts (Male or Female)
GXP Cabinet Alarm Kit
Receipt & Audit Printer Kit
240-Watt Heater Kit w/ Thermostat Control
Choice of Red, Green, Amber color Button Lights
Credit Card Processing - Nayax or Cryptopay
SitePRO-Plus Remote Management System (Entire Site)
