MC520RL-RHV (Hi-Visiblity Bezel)

Rear Load / 2 Hoppers / 2 Bill Recyclers

Standard’s Modular Series change machines were originally designed to for “simple function” coin dispensing. But don’t let that term fool you. These change machines excellent for coin and token dispense, and the technology allows for a variety of ‘plug & play’ options to help customize solutions to your specific business’ needs. For example, by adding the CPi (Mars) Talos series Bill Recyclers in place of the bill acceptors – you can effectively convert the change machine to a low-volume bill exchanger.

Recyclers are programmed and then loaded with $5 bills. Each recycler will hold 25-30 bills in the recycler “barrel.”  When a customer inserts a $20 bill, the machine is programmed to dispense three $5 bills – that are dispensed from the bill acceptor opening one-at-a-time – while the coin hoppers dispense twenty quarters. The concept behind the recyclers in a change machine is that your customers using $5 bills to purchase quarters will replenish your recycler throughout the day. The difference between the MC520RL-RHV and the MC520RL-RHS – is the “RHV” Hi-Visibility unit that is designed to attract more attention with more lighting on the face of the machine.

Standard Change-Makers uses Modular Relay Control Boards to interface the recyclers as separate dispensers, and when one recycler has only a few bills left – the control board transfers the dispense function to the other recycler. When both recyclers are empty – we signal a “COINS ONLY WHEN LIT” indicator light on the front of the machine to let customers know they will not receive any bill change.

MC520RL-RHV Change Machine Features:

  • Rear Load configuration for Bill and Coin Exchange
  • (2) CPi Talos Recyclers – accept $1 – $20 Bills with 500 Bills Stackers
  • Recyclers hold 25-30 $5 Bills – Total Capacity: 60 bills ($1,800)
  • (2) Steel, Modular Series Coin Hoppers – hold up to 9,200 Quarters ($2,300 capacity)
  • EF+ Module with Remote Notification feature
  • Heavy gauge Steel Cabinet with (2) T-Handle Locks (Ace™ Lock Plugs)
  • High gloss, powder-coat enamel painted finish with Stainless Steel faceplate
  • Applied Lexan™ graphics decal
  • Two Year Limited Warranty
SPECIFICATIONS
Accepts
$1 | $5 | $10 | $20
SPECIFICATIONS
Dispenses
$5 Bills and Coins
SPECIFICATIONS
Bills Capacity
50 - 60 bills
SPECIFICATIONS
Coins Capacity
9,200 QTRS / $2,300
SPECIFICATIONS
Dimensions
32”H x 18”W x 13”D
SPECIFICATIONS
Faceplate
36”H x 22”W
SPECIFICATIONS
Ship Weight
175 lbs.

MC520RL-RHV

The Rear Load Model #MC520RL-RHV Bill and Coin Exchange Machine has two coin hoppers and two bill recyclers

MC520RL-RHV

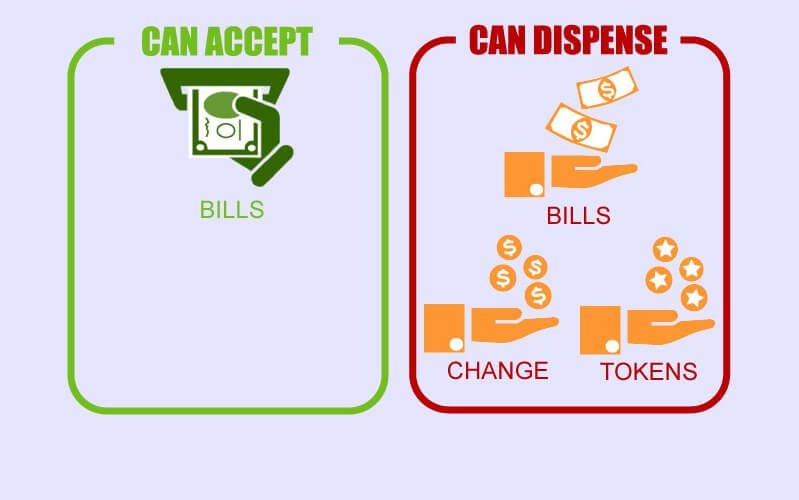

The MC500RL-RHV with Recyclers can accept bills and coins, and dispense bills, and coins or tokens



MC520RL-RHV

Recyclers have two indicator lights: “Out of Service” and “Coins Only When Lit,” which indicates that the recyclers are empty and the machine will only dispense coins

Optional Features for MC520RL-RHV

DESCRIPTION
CPi (Mars) 700 Bills Stacker Upgrade
Locking Hopper Lids
Transcient Surge Suppressor
Custom Lexan Graphics Decal
DESCRIPTION
Rear Load Custom/Oversized Faceplate
Portable Audit Printer Kit
Medeco Lock Plug Upgrade for T-Handle Lock
Rear Load Mounting Bracket Kit
