MC520RL with Recyclers

Rear Load / 2 Hoppers / 2 Bill Recyclers

Standard’s Modular Series were designed for “simple function” coin dispensing. But don’t let that term fool you. These changers are excellent coin & tokens change machines, and offer a variety of ‘plug & play’ options to help you customize the machine to your specific business needs. For example, by adding the CPi (Mars) Talos Bill Recyclers in the place of the bill acceptors – you effectively convert this machine to a low-cost, low capacity bill exchanger

The MC520RL-RHS (High Security Recycler) or MC520RL-RHV (Hi-Visibility Recycler) have the option of two different and distinct bezel configurations. The Hi-Visibility bezel is bigger and has moving LED lights that are designed to attract attention. The Hi-security shows just a small portion of the acceptor’s bezel through the stainless steel faceplate, and provides a more secure option.

Recyclers are programmed and loaded with $5 bills. Each recycler will hold 25-30 bills in the recycler barrel. When a customer inserts a $20 bill, the machine is programmed to dispense 20 quarters and three $5 bills – that are dispensed from the bill acceptor opening one-at-a-time. The concept behind the recyclers in change machines is that your customers will replenish the $5 bills over the course of the day as they insert their own $5 bills to get change.

Using the Modular Control boards, the recyclers are interfaced as separate dispensers, and when one recycler is empty the dispense of $5 bills will transfer to the recycler with bills. If both are empty – we have COINS ONLY lights under each recycler to notify customers that they will only get coin change.

MC520RL-Recyclers Change Machine Features:

  • Rear Load configuration for Bill and Coin Exchange
  • (2) Bill Recyclers – accepts $1 – $20 Bills – with 500 Bills Stacker
  • Recyclers hold 25-30 bills each – total bill capacity up to 60 bills
  • (2) Steel, Modular Series Coin Hopper – holds up to 9,200 Quarters ($2,300 capacity)
  • EF+ Module included
  • Heavy gauge steel cabinets with Painted Steel Faceplate
  • (1) Stainless Steel Coin Cup
  • High gloss, powder-coat enamel paint finish with applied Lexan graphics decal
  • Two Year Limited Warranty
SPECIFICATIONS
SPECIFICATIONS
Accepts
$1 | $5 | $10 | $20
Dispenses
Bills and Coins
Bills Capacity
50 - 60 bills
Coins Capacity
9,200 Quarters | $2,300
Dimensions
32"H x 18"W x 13"D
Faceplate: Add 2" on all four sides
Ship Weight
186 lbs.

MC520RL with Recyclers

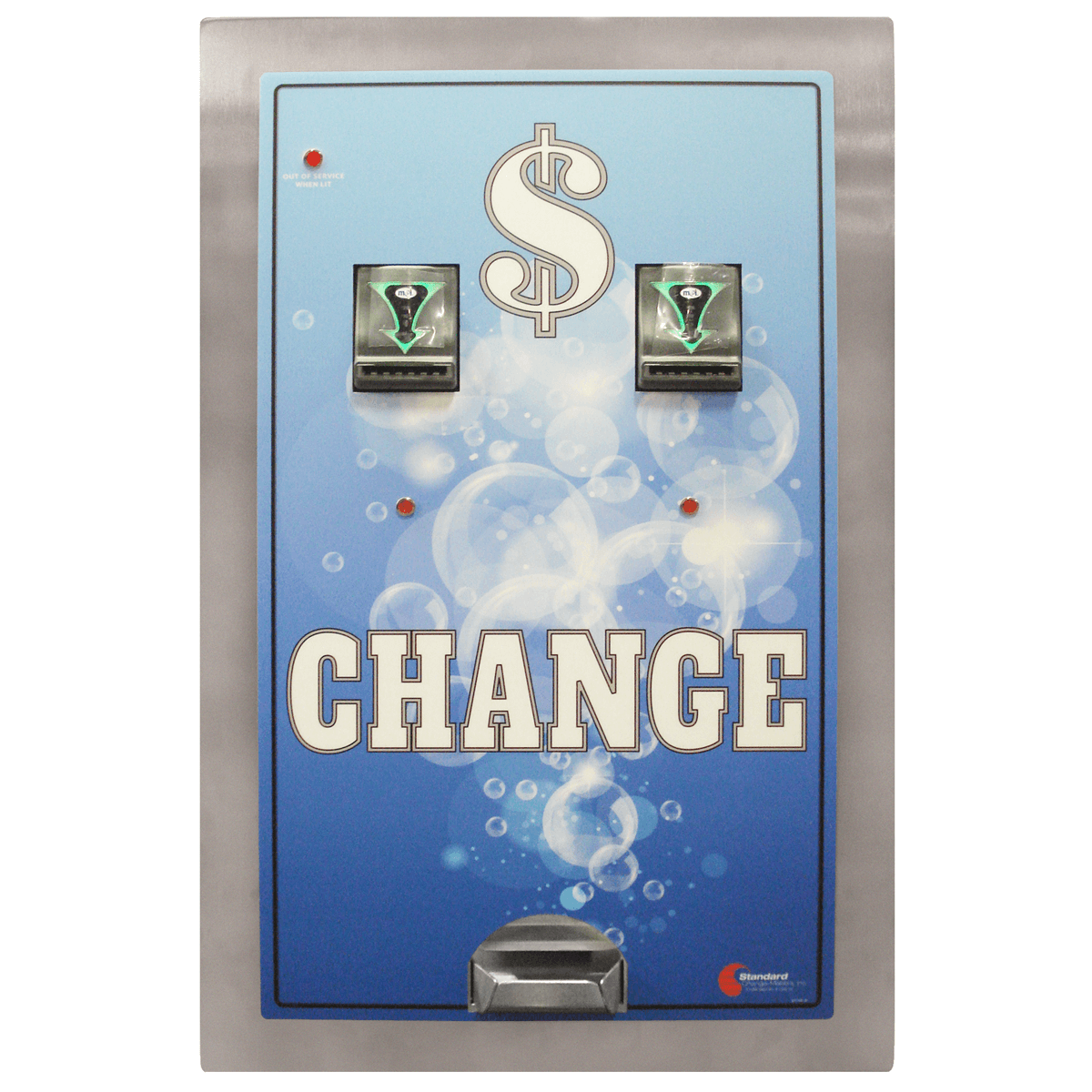

The Rear Load Model #MC520RL-RHV Bill and Coin Exchange Machine has two coin hoppers and two bill recyclers

MC520RL with Recyclers

The MC500RL with Recyclers can accept bills and coins, and dispense bills, and coins or tokens



MC520RL with Recyclers

The Mars VNR Bill Recycler inserted in a Rear Load machine with the Modular Controllers visible

Optional Features for MC520RL with Recyclers

DESCRIPTION
MEI 700 Bills Stacker Upgrade
Locking Hopper Lids
Electronic Coin Acceptor Kit
Transcient Surge Suppressor
Custom Lexan Graphics Decal
180-watt Strip Heater (with thermostat)
DESCRIPTION
MEI 1,000 Bills Stacker Upgrade
Rear Load Custom/Oversized Faceplate
Portable Audit Printer Kit
Medeco Lock Plug Upgrade for T-Handle Lock
Rear Load Mounting Bracket Kit
Stainless Steel Faceplate
