MC640RL-DA Change Machine

Standard Change-Makers’ Modular Series change machines are engineered for dependable “simple-function” coin dispensing—but their true strength lies in flexibility, capacity, and reliability. These machines are proven coin and token changers for demanding commercial environments, offering plug-and-play modular options that allow operators to tailor each machine to their specific business needs.

The MC640RL-DA Dual Acceptor change machine features Standard’s exclusive Dual Redundancy Feature, which enables communication between both bill acceptors and coin hoppers. If one bill acceptor becomes jammed or temporarily unavailable, the system automatically continues dispensing from the remaining components—providing true built-in backup and maximizing uptime.

High-Capacity Four-Hopper Configuration

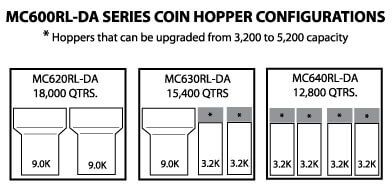

The MC640RL-DA is equipped with four standard coin hoppers, providing a combined capacity of up to 12,800 quarters ($3,200 total). From a capacity standpoint, it serves as a modern replacement for the SC34RL-DA System 600 Series model, delivering similar throughput with Modular Series flexibility.

The four-hopper design allows operators to dispense: Coins, Tokens, a combination of coins and tokens, or multiple denominations (commonly dollar coins, quarters, dimes, and nickels).

Upgradeable for Even Greater Capacity

For locations with extreme demand, each standard 3,200-coin hopper can be upgraded to a 5,200-quarter hi-capacity hopper, increasing total capacity to an impressive 20,800 quarters ($5,200) in a single machine—reducing refill frequency and service time.

Built for Security, Durability & Control

The MC640RL-DA features a solid, welded steel cabinet with a painted steel faceplate, built to withstand heavy commercial use. Security is enhanced with two crank locks and Medeco lock plugs, helping protect cash and internal components.

As standard equipment, the machine includes the Expanded Function (EF) Module, featuring: LCD display, Push-button inputs for simple programming, diagnostics, and audit reporting. By connecting an Ethernet cable between the EF+ Module and a network router, you can program it to send alerts or daily audit reports via email. The MC640RL-DA is also compatible with SCM Connect, enabling monitoring and operational visibility for connected machines – including remote resets and coin dispensing from anywhere.

Ideal Applications

The MC640RL-DA is commonly used in:

• Commercial coin laundries

• Car washes (self-serve bays, vacuums, and vending areas)

• Multi-denomination change locations

• High-volume cash environments

With its four-hopper flexibility, dual acceptor redundancy, upgradeable capacity, and rugged construction, the MC640RL-DA Modular Series change machine delivers maximum uptime and unmatched versatility for operators who demand more from a single changer.

MC640RL-DA Change Machine Features:

• Rear Load configuration for Change or Tokens
• (2) Bill Acceptors – accepts $1 – $20 Bills – with 1,000 Bills Stackers each
  (Coinco Vantage, CPi (Mars) Talos, Pyramid APEX, and Cashcode available)
• (4) Steel, Modular Series Coin Hoppers – holds up to 12,800 Quarters ($3,200 capacity)
• EF+ Module – with Remote Notification Feature
• Heavy-gauge steel cabinets with Painted Steel Faceplate
• (1) Stainless Steel Coin Cup
• High gloss, powder-coat enamel paint finish with applied Lexan graphics decal
• ETL certified in accordance with UL and CSA standards
• Two-Year Limited Warranty
